OhmPi electronic design

Measurement board

The measurement board integrates different electronic components to

  • measure the voltage at MN

  • measure the current injected at AB

  • switch the polarity of AB (to make different half-cycles/stack)

Some general explanation about the components is given below to help you understand the general electronics of the OhmPi. For more details, we redirect the reader to the datasheet of each component.

Measuring voltage

Voltage measurement is typically done through an ADC (Analog to Digital Converter). In the OhmPi, the component ADS1115, a 16-bit ADC is used. The ADS1115 is also equipped with a programmable gain control (PGA), which means it can scale up the measured voltage by a factor before digitizing it. Its gain can vary between 2/3 and 16. With a gain of 1, this component can measure voltages between 0 and 5 V with a precision of 5 / (2 ^ 16) = 0.076 mV.

However, we often measure voltage beyond 5 V. So to measure larger voltage with our ADC, we need to divide the received voltage. In mb_2023, this is done using a resistor divider bridge. The voltage at MN is the distributed across two resistors placed in series according to their respective resistances. For instance, if we see 12V at MN and have two resistors in series of 150 and 300 Ohms. We will measure 12 * 150 / (150 + 300) = 4 V on the first resistor and 12 * 300 / (150 + 300) = 8 V on the second. The 4 V can be measured by our ADC.

Another technique to reduce the voltage consists in using operational amplifier (opamp). These devices have multiple applications and using a given configuration with a known resistance, can be used to scale down the voltage input. In addition, opamp are used in ‘follow-up’ mode to ensure a high input impedance of the MN part. Indeed, if current is leaking in the MN part while we measure, it will affect our measurement.

In the measurement board 2024 (mb_2024), an opamp is also used in differential mode to measure the difference in voltage between M and N (N is used as a ‘floating ground’). This enables us to measure much higher voltage as long as the difference between M and N is not too large.

Measuring current

Current measurement is usually obtained by measuring the voltage through a very accurate resistance called a shunt resistance. In mb_2023, a shunt resistance of 2 Ohms is used. As this resistance has a tiny value, the voltage drop measured through it is also very small and need to be amplified before being measured by the ADC. This is done through the INA282 component (also an opamp).

In mb_2024, the current measurement is done via a “Click module” where the shunt and amplifier (INA equivalent) are already soldered.

Polarity control

Each half-cycle has a different polarity. Current is first injected from A to B then from B to A with or without an off-time between the two injections. This cycle of polarity is ensured using four relays (optical in v2023, mechanical in v2024) that open or close alternatively. The relays are controlled from the MCP23008 which is GPIO expander.

Communication

The ADC (ADS1115) and GPI expander (MCP23008) communicate with the controller (raspberrypi) via two wires (SDA and SCL) using the I2C protocol. This protocol makes use of two wires. One wire is used to send pulses from a clock (SCL) and the other one to transmit data (SDA). These wires must be pulled high using pull-up resistors (meaning at rest, there should be 5V between these wires and the ground).

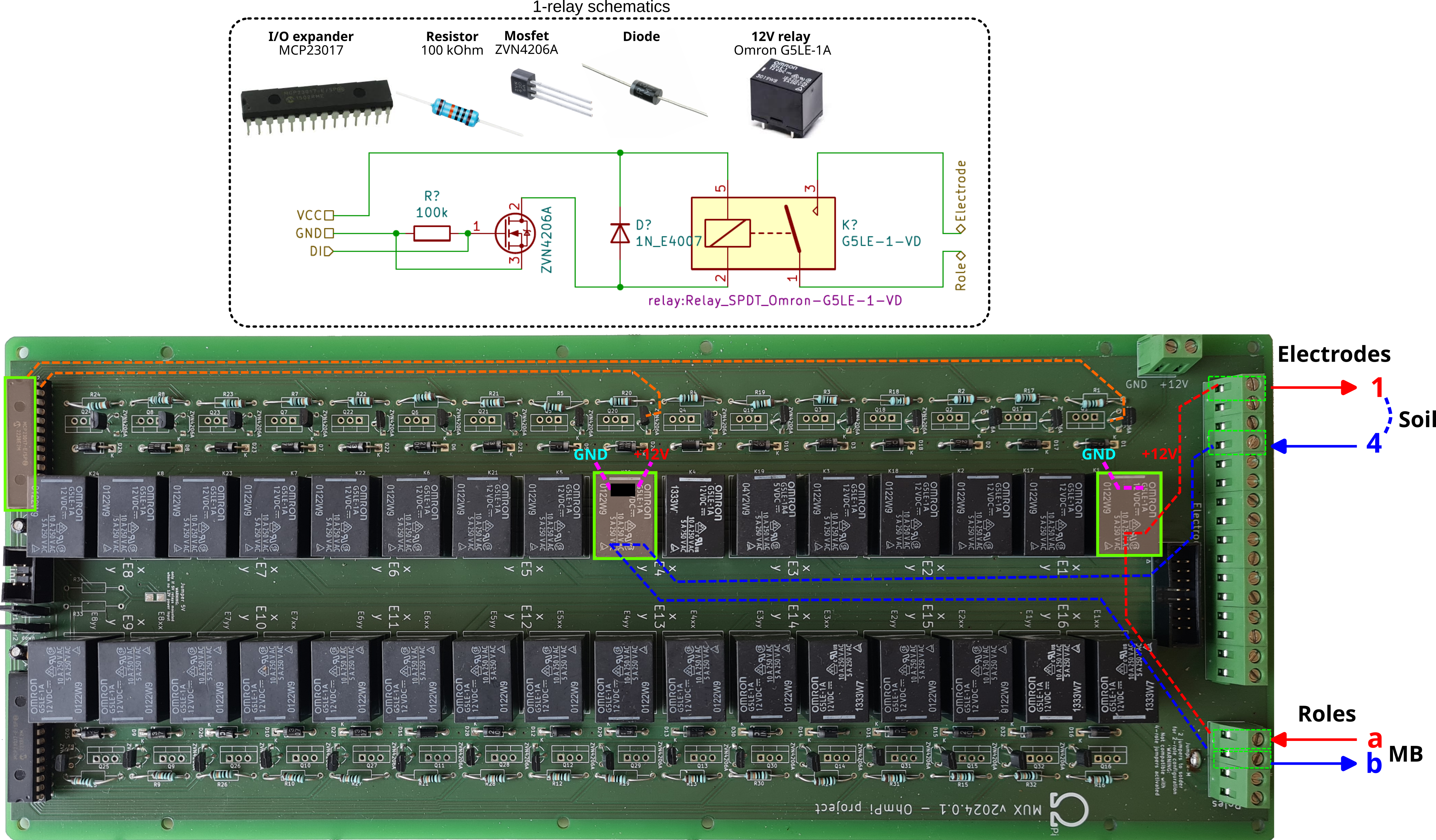

Multiplexer

Multiplexer are used to address multiple electrodes. For this they use relays to create an electronic path between the electrode and the entry (A, B, M, or N) on the measurement board. The relays are usually controlled by a GPIO expander (MCP23017). Because too many GPIO expander cannot be addressed on the same I2C bus, we use a I2C expander (TCA9548A) which is itself connected via I2C to the controller (Rapsberry Pi).
